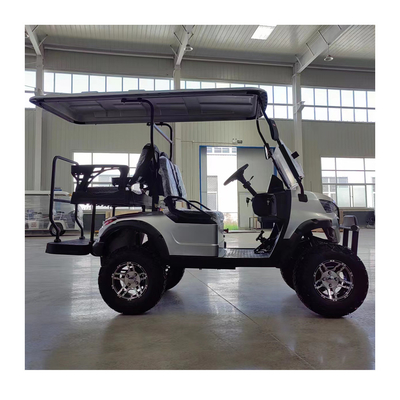

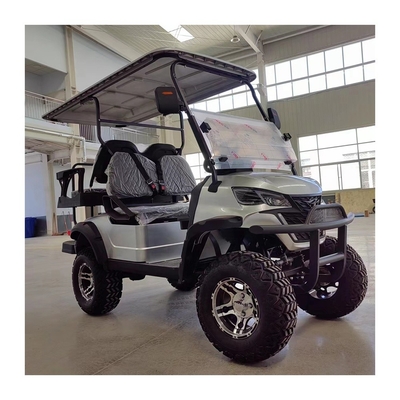

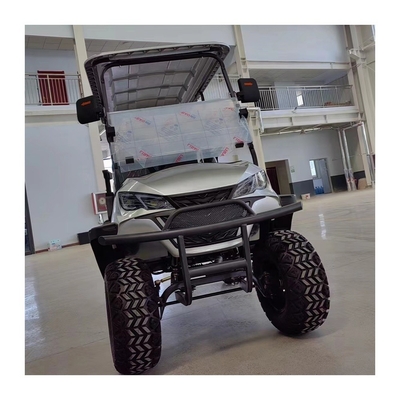

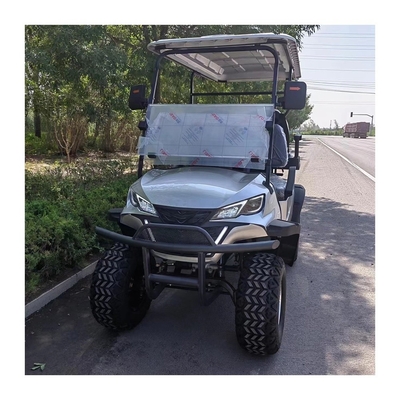

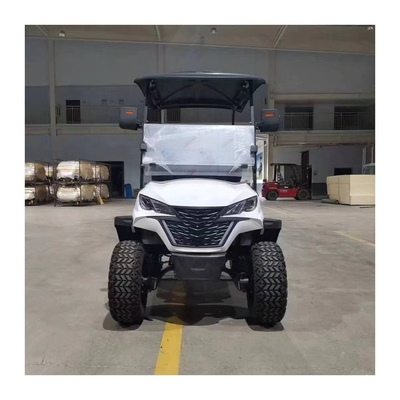

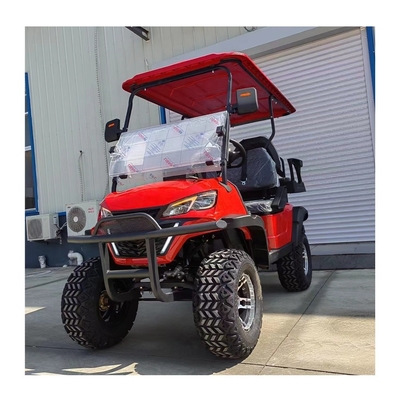

4 Wheel Drive 4 Seater Electric Golf Cart with Minimum Grand Clearance of 100-150mm

— Specifications —

      • Item Name: Golf Cart C2+2

      Electric Gas System

      • Electric Control: 48V full intelligent electronic control

      • Battery: 8V 150Ah *6PCS (maintention-free super power / energy battery)

      • Electric Machine: Depda 4.0kW AC motor

      • Charger: Vehicle-mounted intelligent charger

      • Charging Time: 8-10 hours (80% discharge rate)

      • Charge Input Voltage: 220V /110V

      • Max. Travel Speed: 30km/h

      • Max. Gradient: 20%

      • Min. Turning Radius: 5.6m

      • Size: 2850*1250*1950mm

      • Wheelbase: 1680mm

      • Wheel Base (Front and Rear): 900mm / 1000mm

      • Braking Distance: ≤5m

      • Min. Ground Clearance: 150mm

      • Driving Range: 80-100km

      • Rated Occupant: 4 people

      • Vehicle Equipment Mass: 470kg

      • Seat: Row seats (leather fabric + high rebound PU, seat color optional)

      • Car Body: Steel frame + injection molded shell /ABS engineering plastic molded parts

      • Appearance: Combined instrument display large screen

      • Rearview Mirror: Manual external rearview mirror strap

      • Lights And Signals: LED combined headlight, turn signal, combined rear taillight, brake light, electric horn

      • Switch: Start switch, near and far light, four corner flashing light, advance and retreat switch, USB jack

      • Frame: Steel structure overall frame, optimized anti-rust electrophoresis, paint treatment

      • Steering Wheel: Polyurethane foam steering wheel

      Bottom Disk System

      • Power Transmission System: Endless variable speed system

      • Steering System: Rack and pinion steering machine

      • Front Axle and Suspension: McPherson independent suspension

      • Rear Axle and Suspension: Integral rear axle + high strength leaf spring + cartridge damping

      • Brake System: Four wheel disc brake, double circuit hydraulic brake, parking brake device

      • Wheel: 23*10.5-12 vacuum tires + aluminum wheels

— We can custom colors —

— Applications —

   Please feel free to contact us if any interest to learn more >>

Strict Quality Control

— Certificates —

— Customer Reviews —

— FAQ —

      Q: What is your terms of packing?

      A: Generally, we pack out goods in containers by iron frame. If you have special requirement we can follow.

      Q: What is your terms of payment?

      A: T/T 70% deposit, 30% balance before dispatch from factory.

      Q: How about the logo?

      A: We can customize the logo for free as per your requests.

      Q: How about your delivery time?

      A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

      Q: Can you produce according to the samples?

      A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

      Q: How to charging the electric car, if there are any notice during the charge?

      A: Company will send on charger along with the electric car. The charging will be finish automatically once the battery is full.

      Q: How long for the warranty?

      A: The whole electric car have 12 months warranty.

      Q: Do you accept to customize the vehicles as per our special request?

      A: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.

      Q: Do you test all your goods before delivery?

      A: Yes, we have 100% test before delivery.

      Q: How do you make our business long-term and good relationship?

      A: 1. We keep good quality and competitive price to ensure ourcustomers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

   Please feel free to contact us if you have any other question >>
